Universal Sicoma Dry Concrete Mixing Plant Material Conveying System On Site

Ask Lasest Price
Brand Name :	SUNNY
Model Number :	HSZ75
Price :	USD 110000-150000/ SET
Payment Terms :	L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability :	20 Set/Sets per Month
Delivery Time :	25-30 days

Add to Cart

Product Details
Company Profile

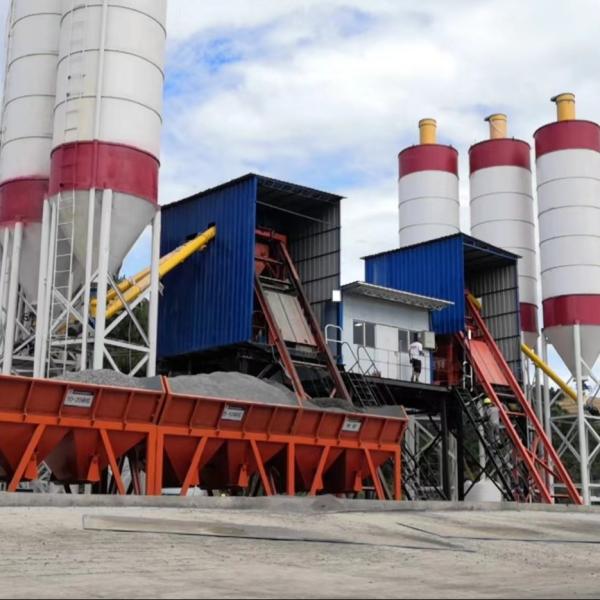

Universal Sicoma Dry Concrete Mixing Plant Material Conveying System On Site

High Efficiency 60m3/h Stationary Concrete Batching Plant Concrete Mixing Plant

The Bucket Type Concrete Batching Plant mainly consists of five major systems: mixer, material weighing system, material conveying system, material storage system, and control system, as well as other ancillary facilities. It is equipped with the necessary devices for storage, batching, conveying, stirring, control and other functions related to various raw materials required for precast concrete production. These raw materials include aggregates, powders, admixtures and water. The plant provides a complete set of equipment for supplying concrete in a concentrated manner rather than by using a mixer.

Name of parameter	HZS60	HZS90	HZS120	HZS180	HZS240
Theoretical productivity	60 M3/h	90 M3/h	120 M3/h	180 M3/h	240m³/h
Model of mixer	JS1000	JS1500	JS2000	JS3000	JS4000
Mixing motor power	2x18.5Kw	2x30Kw	2x37Kw	2x55Kw	2*75Kw
Cycle period	60s	60s	60s	60s	60s
Volume of mixer	1000L	1500L	2000L	3000L	4000L
Unloading height	4.0m	4.0m	4.0m	4.0m	4.0m
Measuring range and precision of aggregate	(600-2000)≤±2%	(700-2400)≤±2%	(1000-3600)≤±2%	(1600-4800)≤±2%	(1600-4800)≤±2%
Measuring range and precision of cement	(300-1200)≤±1%	(300-1200)≤±1%	600-1800)≤±1%	(800-2400)≤±1%	(800-2400)≤±1%
Measuring range and precision of coal ash	(200-600)≤±1%	(200-600)≤±1%	(300-900)≤±1%	(400-1200)≤±1%	(400-1200)≤±2%
Measuring range and precision of water	200-600)≤±1%	(200-600)≤±1%	(200-700)≤±1%	(360-1200)≤±1%	(360-1200)≤±1%
Measuring range and precision of admixture	20-60)≤±1%	(20-60)≤±1%	(30-100)≤±1%	(36-120)≤±1%	(36-120)≤±1%

Universal Sicoma Dry Concrete Mixing Plant Material Conveying System On Site

Q: What’s your after-sale service?
A:12 months warranty for main parts since departure. On-site installation, debugging, workers training. Make sure that your workers operate properly and know daily maintenance well. Q:What’s your delivery time?
A:The goods will be delivered in 30-45 days after the 30% of the total amout is paid as deposit, and maybe a little longer if busy in the factory.
B: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q. How long do you warranty your concrete batching plant?

A:We shall guarantee that the commodity for 1 year, excluding the wearing parts, and we will offer our customers the wearing parts all the time with favorable price.

Q: What should I do if I experience a problem on our equipment?
A: You could email us the photos to show what happens or call us, and our service line is available 24/7, and then we will
feedback you immediately. Also on-site technician service available as request.

Q.How can we install the plant?
A:Our engineer will make installation drawing before we send the machine, and our engineer will go oversea to guide and train the installation after everything is already set in customer's construction site.

Q: Do you have CE certificate for your concrete batching plant?
A: Yes, we have. It is our patent products, certificated by CE.
