    Electric Concrete Cement Mortar Pump Mixer High Pressure ODM

    Ask Lasest Price
    Brand Name : Sunny
    Model Number : HBT40
    Price : USD5000-7000 PER SET
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 500 SET PER MONTH
    Delivery Time : 20-35DAYS
    • Product Details
    • Company Profile

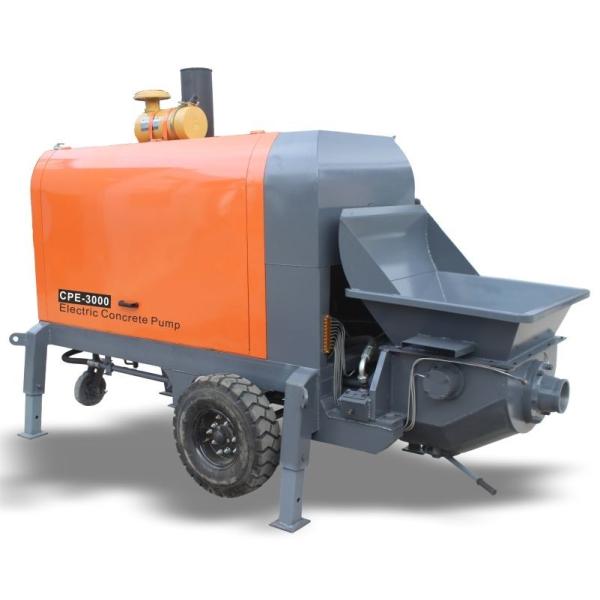

    Electric Concrete Cement Mortar Pump Mixer High Pressure ODM

    Hbt 40 High Pressure Pump for Concrete Machine Concrete Pump in Dubai

    Product Description


    The HBT40 concrete pump offers several advantages in concrete placement:

    1. High Efficiency: With its maximum output capacity of 40 cubic meters per hour, the HBT40 enables fast and continuous concrete pumping, improving construction productivity and meeting project deadlines.

    2. Versatility: The HBT40 concrete pump is suitable for a wide range of concrete mixes, including low slump, high slump, and lightweight concrete. It can be used in various applications, such as foundations, slabs, walls, and more.

    3. Precise Placement: The HBT40 allows for accurate and controlled concrete placement, even in challenging or hard-to-reach areas. It provides flexibility in construction projects, accommodating different heights and distances.

    4. Durability and Reliability: The HBT40 is built to withstand the demanding conditions of construction sites. Its robust construction and high-quality components ensure long-lasting performance and reliability.

    5. Operator-Friendly Design: The HBT40 is designed with user-friendly features that make it easy to operate and maintain. Its intuitive control system and accessible components simplify the pumping process and reduce downtime.

    Electric Concrete Cement Mortar Pump Mixer High Pressure ODM


    Parameters
    Unit
    HBT30.6.35S
    HBT40.8.45S
    HBT50.10.55S
    HBT60.13.90S
    HBT80.16.110S
    Type of Power Machine
    /
    Electric/Diesel engine
    Electric/Diesel engine
    Electric/Diesel engine
    Electric/Diesel engine
    Electric/Diesel engine
    Pumping Volume(Max)
    m³/h
    30
    35
    52
    66
    75
    Outlet Pressure
    Mpa
    6
    8
    10
    13
    13
    Hydraulic System Type
    /
    Open
    Open
    Open
    Open
    Open
    High/Low Switch
    /
    Rotary Valve
    Rotary Valve
    Rotary Valve
    Rotary Valve
    Rotary Valve
    Rater Power
    kw
    35
    45
    55
    90
    90
    Distribution Valve Type
    /
    S Valve
    S Valve
    S Valve
    S Valve
    S Valve
    Concrete Cylinder Diameter*Stroke
    mm
    Φ125*600
    Φ140*1000
    Φ200*1000
    Φ200*1650
    Φ200*1800
    Hopper Capacity*Feeding Height
    L*mm
    350*1000
    350*1100
    600*1400
    600*1400
    600*1400
    Max.Aggregate Size
    mm
    Pebble:20;
    Crushed Stone:20
    Pebble:20;
    Crushed Stone:20
    Pebble:50;
    Crushed Stone:40
    Pebble:50;
    Crushed Stone:40
    Pebble:50;
    Crushed Stone:40
    Total Weight
    kg
    2300
    2500
    4500
    6000
    6100
    Dimension(L*W*H)
    mm
    3800*1500*1600
    4500*1500*1650
    5100*1700*2000
    6400*2100*2200
    6400*2100*2
